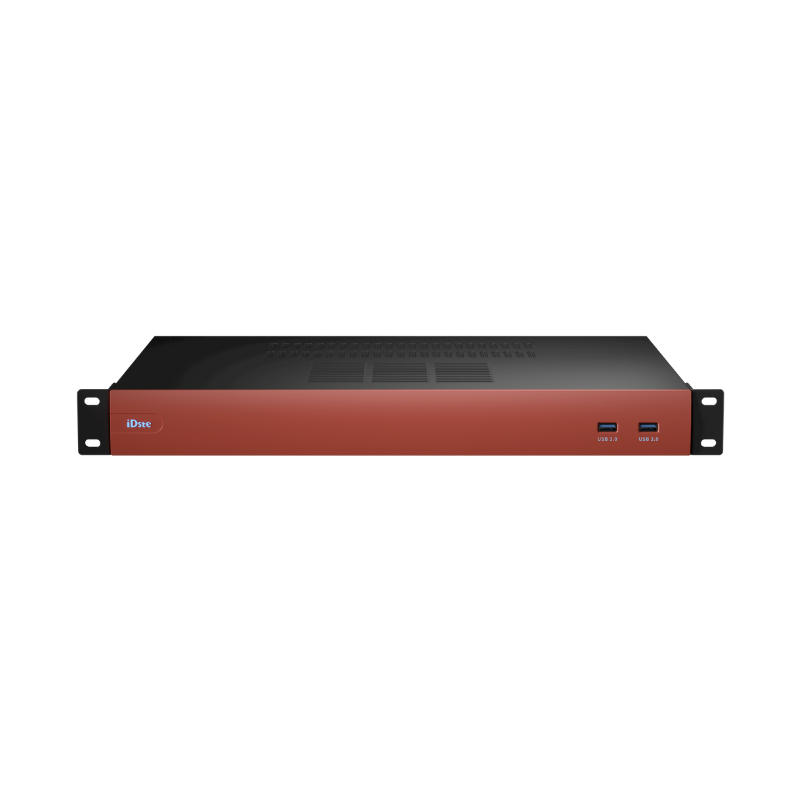

NC-03P
Intelligent fusion information terminal
Key Features：

Integrates an industrial PC, IoT gateway, KVM, recording/streaming host, and gigabit switch

Is equipped with high-quality audio and video encoding and decoding capabilities.

Features advanced audio processing with a built-in DSP, tailored for meeting rooms and classrooms.

Learn More
2.4G wireless IoT The module, with the system platform and applet, can remotely manage the terminal equipment and the IoT module manually, timing, and centrally
An industrial computer is an industrial control computer designed for industrial use
Campus radio is a kind of low-power FM radio, which can be received by ordinary TV and radio.
A live streaming platform focusing on K12 education, the purpose of which is to achieve seamless connection between teacher resources and student resources
NC-03P Introduction

（1）This 1U rack-mounted terminal integrates multiple functions: 1000M switch (5 RJ45 ports, 1 SFP port, 4 VLAN groups), 2150W digital power amplifier, rich audio/video interfaces (3.5mm I/O, phantom-powered mic inputs), and various communication ports (RS232/RS485, USB, GPIO, dry contact). It features a 44 HDMI seamless matrix (4K support) and 1 HDBaseT 4K output with PoH. The built-in DSP module offers AEC (≥512ms tail, ≥70dB attenuation), noise reduction (SNR ≥100dB), feedback suppression, and 2-way ceiling mic pickup.

（2）With 5*3 audio cross-connect, it supports independent channel configuration. It enables network central control, remote device management, 6-channel power control via Modbus, and AV encoding/decoding for live streaming and broadcast (supports HTTP/RTSP/RTMP). Functions include screen synchronization (6 same/3 different screens), one-tap control via touch display, IC card/QR code attendance, unattended info publishing, and online upgrade. It supports third-party device control via RS232/485 and proprietary microphone management. Relevant CMA/CNAS test reports are required for key parameters.

High Integration

Audio: 2*100W amplifer, 3.5mm Stereo Jack 3*In 3*Out

Video: 4*4 HDMI(1.4B) 4k@30Hz Seamless Matrix(4*In 6*Out), 1*HDBaseT, KVM 1*|n 4*Out

Network Switch: 5*1000M LAN(VLAN) with one POE

Serial Ports: 48V Phantom power supply, 5*RS232, 2*RS485, 2*GPIO, 1*Dry Contact

Optional computer module(i5/8G/512G)

6TOPS Al computing can be applied in Al attendance Total 1U design with rack mount installation simplify the podium

Class Recording

With the recording module, teachers can start recording the course with one tap on the control panel. The recorded files can be stored on a local device or a cloud server.

Live Streaming

When integrated with the audio and video encoding/decoding module, it can stream real-time classroom footage to other classrooms. Students can watch the live broadcast in classrooms or access the live stream from any location via any terminal such as phones and computers.

Timely Power Control

Each device can be set to turn on or off at a specific time. It can be scheduled based on the usage habits of different classrooms for energy saving.

Automatic Broadcast

An administrator can schedule tasks to broadcast specific information to selected classrooms. The relevant devices will then be automatically powered on and off via serial ports, eliminating the need for manual operation.

Parameter
Operating System
Android
Dimensions
1U 440mmx290mmx50mm
Power Input
AC220V±10%50Hz/60Hz
IoT
Integrated 2.4G Wireless Gateway
Audio Input
3.5mm Stereo Jack(x3), supporting wireless microphone(x1)
Audio Input
48V Phantom Power Microphone
Audio Output
3.5mm Stereo Jack(x3)
Audio Output
2*100W Digital Power Amplifier
Reverse Control
In(x1) Out(x4) KVM
Serial Ports
RS232(x5); RS485(x2); GPIO(x2); Dry Contact(x1); USB3.0(x2)
Ethernet
100/1000M RJ-45(x5), one with PoE; SFP(x1), VLAN support
Built-in Industrial Computer
Expandable(up to i5/8GB RAM/512GB SSD)
Built-in Recording Module
Expandable
AI Computing
6TOPS
Parameter
