Product Center

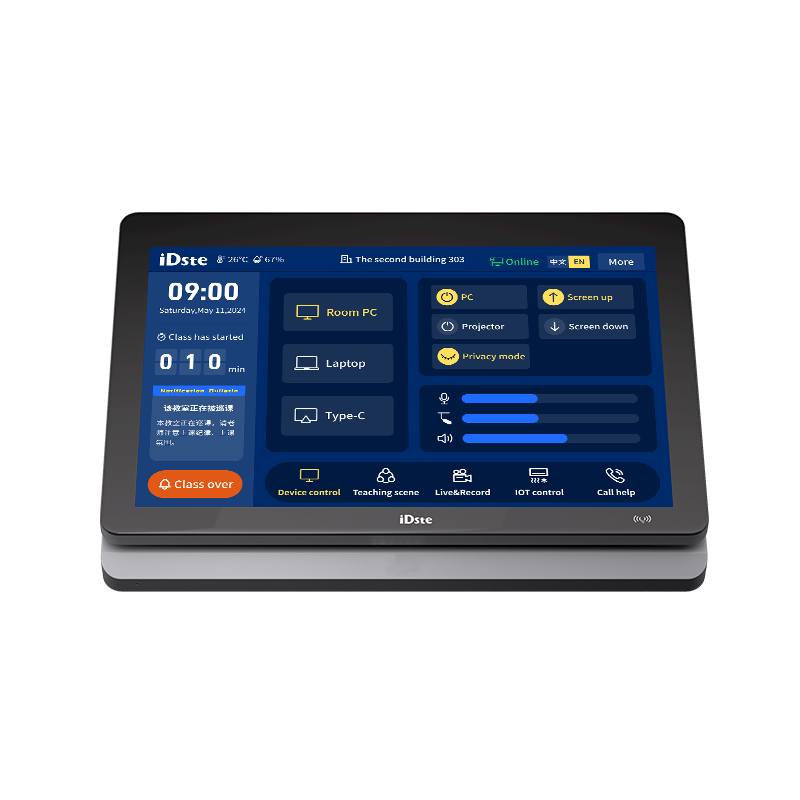

CP-10P

Intelligent Control Panel

Key Features：

Multiple installation methods

Face Recognition

10.1-inch touch screen

Intelligent fusion terminal good assistant

Learn More

CP-10P Introduction

(1) Intelligent touch panel, based on Android system, with 4-core CPU, 4GBRAM, 32GBEMMCFLASH, built-in 1TNPU.Equipped with 10.1-inch industrial touch screen, support 10-point touch, screen resolution 1920 x 1200, brightness 500nits; integrated 2-megapixel binocular camera; integrated IC card reader; built-in Speaker 2W*2, pickup; with audio and video coding and decoding capabilities. With human body near-field sensing ability (within 1.5 meters on the front side), to realize the automatic wake-up function of the screen.

(2) With human body near-field sensing ability (within 1.5 meters on the front side), to realize the automatic wake-up function of the screen. Cooperate with the system platform to support remote IP intercom, voice monitoring, QR code forward/backward scanning, face recognition, class schedule synchronization, IC card synchronization and other functions.

(3) With the same brand intelligent convergence terminal to support one-key classroom, screen switching, sound adjustment, IOT device control, audio and video broadcast control, live classroom, recording preview and control and other functions. Open UI control interface, support interface independent customization.

Multiple installation methods

All-in-one design, supports desktop and wall mounting.

Face Recognition

Supports remote IP intercom, voice listening, QR code forward/backward scanning and face recognition, etc. Equipped with dual 2MP cameras.

10.1-inch touch screen

10.1-inch industrial touch screen, 10-point touch control, screen resolution 1920 x 1200;Face recognition + IC card + QR code forward and reverse scanning multiple identity verification methods, human body entry sensing automatic wake-up.

Intelligent fusion terminal good assistant

With the same brand intelligent fusion terminal to support one-key classroom, screen switching, sound adjustment, IOT device control, audio and video broadcasting control, live classroom, recording and broadcasting preview and control and other functions.

Parameter

Industrial touch screen

10.1 inches

10-point touch

Support

Screen resolution

1920×1200

Brightness

500nits

Camera

2MP

Built-in speaker

2W*2

Display

Classroom current status, weather conditions, date and time, course information

Functions

Classroom reservation, classroom inspection, IP intercom

System

Android

CPU

4-core

RAM

4GB

EMMC FLASH

32GB

NPU

Customization

Support

Material

ABS engineering plastic

RJ45 Gigabit network port

HDMI input interface

1 way

3.5mm audio input interface

1 way

3.5mm audio output interface

1 way

12V/1A output interface

1 way

GPIO interface

1 way

POE or DC12V/3A powered

Supported

Parameter

User Manual

2.2 MB

Product brochure

2.2 MB
