YQ-01M+YQ-01C
5G Microphone
Key Features:

-5G wireless transmission

-Dual-microphone simultaneous amplification

-Flexible pickup mode

-Upgrade sound control

YQ-01M+YQ-01C Introduction

5G Microphone

(1) 5G wireless microphone, the shell is made of high-strength engineering environmental protection plastic injection moulding, no exposed antenna low-power design, built-in moving coil microphone, support 3.5mm interface microphone input, support for power and status display, support for the local volume adjustment and volume memory.

(2) Frequency offset <50KHz, transmitting power 9dBm, RF receiving sensitivity -81dBm, built-in 700mAh rechargeable Li-ion battery, endurance >7h. not less than 2 charging methods, through the TYPE-C and the same brand of charging cradle charging. Effective reception distance of not less than 20 metres (open and no obstacles, receiving and transmitting in a stationary state test results), background noise: no.

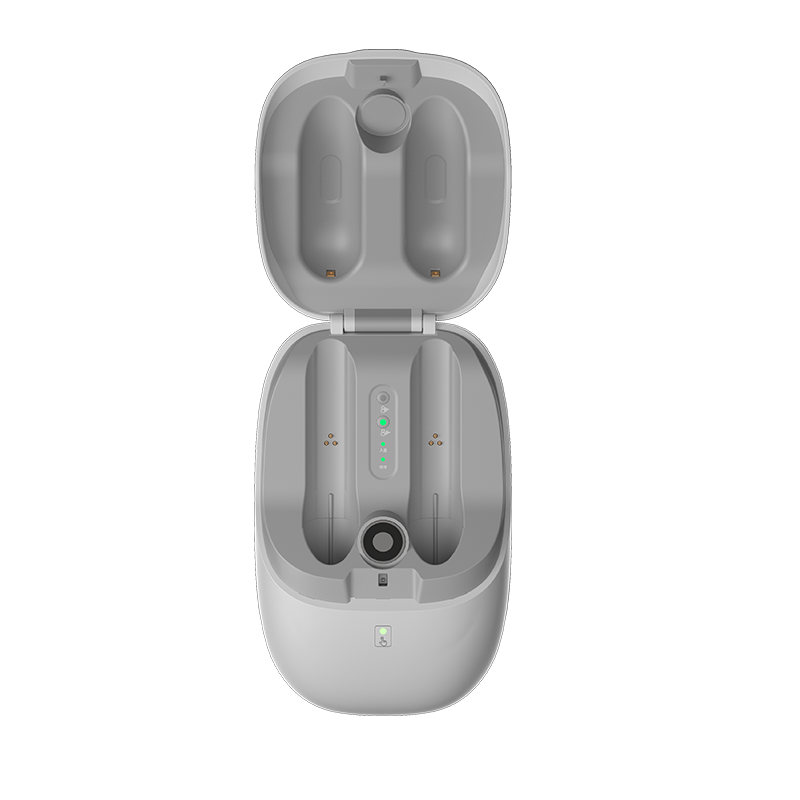

(3) Support point-to-multipoint dynamic access mode. Adopting dynamic frequency hopping and protocol-to-code, the wireless microphone can be accessed to any device with a receiving module. Charging pile built-in UV disinfection function, automatic disinfection. Support two microphones to be used at the same time. Connecting the intelligent terminal to support remote background management, which can detect the charging, borrowing and returning status.

5G wireless transmission

5G wireless transmission, high bandwidth without compression, clear and lossless transmission of the original sound

Dual-microphone simultaneous amplification

Support dual microphone simultaneous amplification, making classroom communication easier.

Flexible pickup mode

One key to switch between two modes of picking up sound at a distance, so that classroom teaching is more free.

Upgrade sound control

Support automatic gain control, EQ sound adjustment, AFC anti-whistling

Parameter
Shell material
ABS
Power supply
built-in lithium battery
Applicable scenes
Classroom, office, stage
Sound channel
dual-channel
Unlocking mode
Remote, local key, WeChat sweep code and IC card swipe card
Sound channel
1
Use
Handheld
Pointing characteristics
Omni-directional
Endurance
>10h
Features
Automatic disinfection, self-locking function, remote monitoring, pickup distance switching
Overall size
180mm*120mm*74mm
Net weight
1056g
Gross weight
1300g
